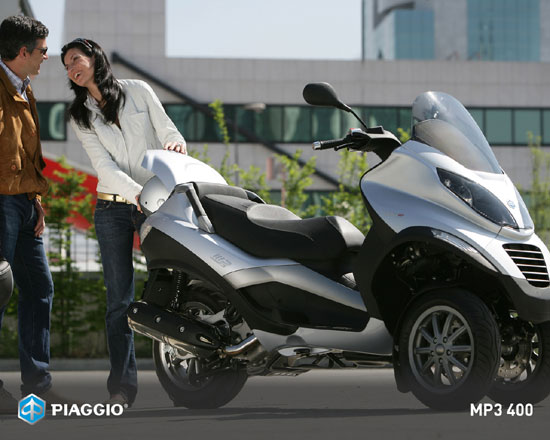

2009 Piaggio MP3 400
The Piaggio MP3, the three-wheel scooter that recently revolutionized personal transport by redefining the entire concept of ride stability, has grown to a 400cc displacement to offer unprecedented performance and safety. Fun, nimble and agile, the Piaggio MP3 400 i.e. handles curves with extraordinary safety and road holding that only the MP3 can manage, while providing all the power and distance range of a real touring maxi scooter. The Piaggio MP3 has upped its engine capacity to offer increased performance together with a safe, fun ride. The new Master 400 engine—a four-stroke, four-valve unit with liquid cooling and electronic injection, provides a 34 hp power output at 7,500 rpm and torque of 38 Nm at 5,500 rpm. These performance figures translate into smooth, full power output at any engine speed, with response and acceleration at the top of the category. This makes it possible for the Piaggio MP3 400 i.e. to handle all kinds of riding, from town traffic to city bypass roads and tougher out-of-town roads in total comfort and safety even when riding with a passenger and a full load. Extra power and full-bodied torque become available at low engine rpm and are in fact crucial at critical moments like overtaking, when the Master 400 i.e. engine’s acceleration and throttle response together with the exceptional stability of the two-wheel front suspension let the rider pull away fast and safely.
In addition to the many technical advantages of the new Master 400 engine, the rider also enjoys reduced fuel consumption compared to larger capacity scooters, but the same “maxi” performance.
The Piaggio MP3 400 i.e. is truly an all-round scooter. On town rides, the Piaggio MP3 400 i.e. handles cobblestones, train tracks and irregular roads with the greatest of ease and stays stable and safe on wet roads as well. The exceptionally large underseat storage bay (which holds two full-face helmets), the wraparound protection of the wide front shield and the excellent cruising speed make this the ideal vehicle for long-distance as well as tougher rides.
The new 400cc engine also adds substantial advantages as regards the running gear: the use of the new engine and a 14” rear wheel with a 140/70 tire on the Piaggio MP3 400 i.e. has increased the wheelbase by a good 2.5 inches compared to the 250 cc version.
The result is impeccable stability when leaning into fast curves or when braking thanks to the longer rear end, increased rear wheel contact surface and outstanding road grip provided by the innovative parallelogram front suspension built to an original Piaggio design. Its tilt mechanism is composed of four cast aluminum arms, with four hinges fixed to the central tube and two guide tubes on either side of the parallelogram, connected to the arms via suspension pins and ball bearings.
The high strength tubular steel frame of the Piaggio MP3 400 is the result of a design project based on the latest CAD technology and computerized FEM (Finite Element Method) analysis. All aspects of the frame, including its structural strength and weight were defined and thoroughly tested at the very beginning of the project, and the validity of the solutions adopted were verified at every stage of the process.
Comfortable and innovative with exceptional performance, the Piaggio MP3 400 i.e. will appeal to novice riders as well as seasoned motorcyclists, as it combines enjoyment and ease of use with unprecedented safety.
The MP3 250 and MP3 400 redefines the entire concept of ride stability. With three ground
contact points and a shock absorber on each wheel, the MP3 swallows bumps with incredible efficiency.
• Single cylinder, four-stroke Piaggio Master engine
• Electro-hydraulic suspension locking system
• 40-degree lean angle for ultimate maneuverability
• Underseat storage that holds 2 helmets
• 3 disc brakes
2009 Piaggio MP3 400 - USA Specifications
MSRP $8,699 USD
ENGINE TYPE Single-cylinder MASTER, four-stroke, four-valve, electronic injection, catalysed
DISPLACEMENT 398.9cc
BORE x STROKE 85.8 mm / 69 mm
MAX POWER AT SHAFT 34 hp (25 kW) @ 7,550 rpm
MAX TORQUE 37 Nm at 5,000 rpm
MAX SPEED 88 mph (142 km/h)
FUEL / TANK CAPACITY Unleaded 3.2 gallons (12 litres)
GAS MILEAGE 57-59 mpg
DISTRIBUTION Cam head single shaft-SOHC (2 valves)
COOLING SYSTEM Liquid
LUBRICATION Wet sump, 850cc capacity; chain-driven lobe pump; intake and delivery filters
INGINTION Electronic inductive discharge, integrated variable timing
GEARS CVT CVT transformer with torque slave
CLUTCH Automatic dry centrifuge with damper buffers
CHASSIS Twin cradle made of high-strength steel tubes
FRONT SUSPENSION Parallelogram composed of four aluminum arms supporting two steering tubes, cantilevered suspension - Travel: 85 mm. Electro-hydraulic suspension locking system. with four-position spring preload. Travel: 110 mm
REAR SUSPENSION Two dual effect hydraulic shocks, four-position spring preload. Travel: 110 mm
FRONT BREAK Two stainless steel disks, 240 mm and floating caliper with two pistons, 30 mm
REAR BREAK 240 mm stainless steel disk, large-piston floating caliper with two pistons 22 mm
FRONT TIRE Tubeless 120 / 70 - 12"
REAR TIRE Tubeless 140 / 70 - 14"
LENGTH 85.8" (2179 mm)
WIDTH 29.3" (745 mm)
WHEELBASE 61" (1550 mm)
SEAT HEIGHT 30.9" (785 mm)
DRY WEIGHT 538 lbs (244 kg)
AVAILABLE COLORS Orione Gray, Midnight Blue
2009 Piaggio MP3 400 - Canada Specifications
MSRP C$9,995 CDN
ENGINE TYPE Single-cylinder MASTER, four-stroke, four-valve, electronic injection, catalysed
DISPLACEMENT 398.9cc
BORE x STROKE 85.8 mm / 69 mm
MAX POWER AT SHAFT 34 hp (25 kW) @ 7,550 rpm
MAX TORQUE 37 Nm at 5,000 rpm
MAX SPEED 88 mph (142 km/h)
FUEL / TANK CAPACITY Unleaded 3.2 gallons (12 litres)
GAS MILEAGE 57-59 mpg
DISTRIBUTION Cam head single shaft-SOHC (2 valves)
COOLING SYSTEM Liquid
LUBRICATION Wet sump, 850cc capacity; chain-driven lobe pump; intake and delivery filters
INGINTION Electronic inductive discharge, integrated variable timing
GEARS CVT CVT transformer with torque slave
CLUTCH Automatic dry centrifuge with damper buffers
CHASSIS Twin cradle made of high-strength steel tubes
FRONT SUSPENSION Parallelogram composed of four aluminum arms supporting two steering tubes, cantilevered suspension - Travel: 85 mm. Electro-hydraulic suspension locking system. with four-position spring preload. Travel: 110 mm
REAR SUSPENSION Two dual effect hydraulic shocks, four-position spring preload. Travel: 110 mm
FRONT BREAK Two stainless steel disks, 240 mm and floating caliper with two pistons, 30 mm
REAR BREAK 240 mm stainless steel disk, large-piston floating caliper with two pistons 22 mm
FRONT TIRE Tubeless 120 / 70 - 12"
REAR TIRE Tubeless 140 / 70 - 14"
LENGTH 85.8" (2179 mm)
WIDTH 29.3" (745 mm)
WHEELBASE 61" (1550 mm)
SEAT HEIGHT 30.9" (785 mm)
DRY WEIGHT 538 lbs (244 kg)
AVAILABLE COLORS Orione Gray, Midnight Blue
2009 Piaggio MP3 400 - UK Specifications
MSRP £TBA
Capacity
400cc (EURO 3)
Engine
MASTER 4 valve, 4 stroke single cylinder with electronic injection
Cooling
Liquid
Electric Starter
Transmission
Automatic Twist and Go
Front Suspension
Parallelogram, cantilever
Rear Suspension
Twin hydraulic shock absorbers with pre-load adjuster
Front Brake Disc
Double Ø240mm disc
Rear Brake Disc
Ø240mm disc
Wheel Size
12”-14”
Running Weight
238 kg
Lockable Glove Box
Underseat Storage Compartment
Digital Clock
Colours Available
Midnight Blue, Excalibur Silver
