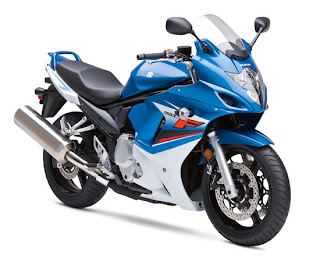

2009 Suzuki GSX650F ABS
Here's fuel-injected proof that sportbikes don't have to be one-dimensional. Introducing the GSX650F, featuring an ideal balance of sportbike excitement and all-around versatile performance. Available with standard ABS braking for 2009.
It offers crisp handling, so you can turn any winding road into a ride to remember. Its liquid-cooled four-cylinder engine is tuned for strong low-end and midrange power, for smooth and easy riding around town. Whether you're on the back roads or the open highway, you'll appreciate the GSX650F's comfortable design, including a more upright seating position that makes all-day rides a pleasure.
And the GSX650F has one more feature that you'll appreciate - a price tag that will leave you smiling.
FEATURES:
Chassis Features
- 41mm forks are designed for a smooth ride and are preload adjustable for a variety of riding conditions
- A stylish full fairing design with styling cues taken from the high performance GSX-R series for a sport-inspired look with full fairing protection for the rider
- Compact fuel tank is designed for an easy reach to the handlebar with a narrow mid section while still retaining a full 19.0 L (4.2 Imp gal) of fuel capacity.
- Double cradle steel frame provides excellent balance, nimble handling a unmatched rider comfort with a sporty overall feel
- GSX-R inspired instrument cluster includes a step motor driven tachometer, multi-function LCD for dual trip meters, reserve trip meter, clock, fuel gauge, and a useful gear position indicator with GSX-R inspired shift light
- Handlebar is rubber mounted for reduced vibration
- Rebound and preload adjustable rear shock works in conjunction with a link-type rear suspension for excellent road holding performance
- Tokico 4 piston front brake calipers are used with a 310mm floating discs for optimum braking performance and combined with a pin slide two piston rear caliper and a 240mm rear brake disc
- Wide, comfortable one piece seat with low seat height for increased rider and passenger comfort
Engine Features
- A large capacity exhaust system utilizes a high capacity catalyzer and an oxygen sensor to meet strict - Euro 3 and Tier 2 emissions requirements while still providing strong performance throughout the rpm range
- Cam profiles are chosen with an emphasis on low-to-mid range power output and help to deliver highly accessible performance that is well suited to an entry level rider
- Compact, liquid-cooled, fuel injected, DOHC 656cc engine utilizing a bore and stroke of 65.5 mm x 48.7 mm and featuring strong and easily accessible power and torque
- Piston rings are manufactured with ion plating treatment using Physical Vapor Deposition (PVD) for a smoother surface, increased durability and reduced friction and reduced oil consumption
- Six speed transmission works smoothly with a hydraulic clutch for crisp shifting in a variety of riding conditions
- Suzuki Composite Electrochemical Material (SCEM) coated cylinders deliver high heat dissipation and allow for better ring seal while reducing blow-by and mechanical losses
- Suzuki Dual Throttle Valve fuel injection system for smooth acceleration. Fuel injectors are compact and lightweight with 4 hole injectors for optimum fuel atomization and greater power output
- The cylinder head achieves a narrow valve angle of 17 degrees intake and exhaust for high intake and exhaust efficiency
- The GSX650F ABS keeps cool with a high efficiency radiator combined with a 190mm electric cooling fan controlled by the ECM and a high output water pump with a bearing-less design for reduced weight
Key Features
- Model standard with ABS Braking for 2009
- New graphics and body colors for 2009, including Suzuki's legendary Blue/White combination, and new Black/Orange design
Chassis Features
- 41mm forks are designed for a smooth ride and are preload adjustable for a variety of riding conditions
- A stylish full fairing design with styling cues taken from the high performance GSX-R series for a sport-inspired look with full fairing protection for the rider
- Compact fuel tank is designed for an easy reach to the handlebar with a narrow mid section while still retaining a full 19.0 L (4.2 Imp gal) of fuel capacity.
- Double cradle steel frame provides excellent balance, nimble handling a unmatched rider comfort with a sporty overall feel
- GSX-R inspired instrument cluster includes a step motor driven tachometer, multi-function LCD for dual trip meters, reserve trip meter, clock, fuel gauge, and a useful gear position indicator with GSX-R inspired shift light
- Handlebar is rubber mounted for reduced vibration
- Rebound and preload adjustable rear shock works in conjunction with a link-type rear suspension for excellent road holding performance
- Tokico 4 piston front brake calipers are used with a 310mm floating discs for optimum braking performance and combined with a pin slide two piston rear caliper and a 240mm rear brake disc
- Wide, comfortable one piece seat with low seat height for increased rider and passenger comfort
Engine Features
- A large capacity exhaust system utilizes a high capacity catalyzer and an oxygen sensor to meet strict - Euro 3 and Tier 2 emissions requirements while still providing strong performance throughout the rpm range
- Cam profiles are chosen with an emphasis on low-to-mid range power output and help to deliver highly accessible performance that is well suited to an entry level rider
- Compact, liquid-cooled, fuel injected, DOHC 656cc engine utilizing a bore and stroke of 65.5 mm x 48.7 mm and featuring strong and easily accessible power and torque
- Piston rings are manufactured with ion plating treatment using Physical Vapor Deposition (PVD) for a smoother surface, increased durability and reduced friction and reduced oil consumption
- Six speed transmission works smoothly with a hydraulic clutch for crisp shifting in a variety of riding conditions
- Suzuki Composite Electrochemical Material (SCEM) coated cylinders deliver high heat dissipation and allow for better ring seal while reducing blow-by and mechanical losses
- Suzuki Dual Throttle Valve fuel injection system for smooth acceleration. Fuel injectors are compact and lightweight with 4 hole injectors for optimum fuel atomization and greater power output
- The cylinder head achieves a narrow valve angle of 17 degrees intake and exhaust for high intake and exhaust efficiency
- The GSX650F ABS keeps cool with a high efficiency radiator combined with a 190mm electric cooling fan controlled by the ECM and a high output water pump with a bearing-less design for reduced weight
Key Features
- Model standard with ABS Braking for 2009
- New graphics and body colors for 2009, including Suzuki's legendary Blue/White combination, and new Black/Orange design
2009 Suzuki GSX650F ABS - USA Specifications
MSRP: $0 USD
Model Not available in the USA. See Non-ABS version.
2009 Suzuki GSX650F ABS - Canada Specifications
MSRP: $8,799 CDN
Chassis:
Brakes Front Disc brake, twin
Brakes Rear Disc brake
Color Blue/White, Orange/Black
Curb Weight 245 kg (541 lbs)
Final Drive RK525 SMOZ7Y, 118 links
Fuel Tank Capacity 19.0 L (5.0/4.2 US/Imp gal)
Ground Clearance 125 mm (4.9 in)
Overall Length 2130 mm (83.9 in)
Overall Width 760 mm (29.9 in)
Seat Height 770 mm (30.3 in)
Suspension Front Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Tires Front 120/70ZR17M/C (58W) tubeless
Tires Rear 160/60ZR17M/C (69W), tubeless
Transmission 6-speed constant mesh
Wheelbase 1470 mm (57.9 in)
Engine:
Bore Stroke 65.5 mm (2.579 in) x 48.7 mm (1.917 in)
Compression Ratio 11.5 : 1
Engine 656cc (40.0 cu. In), 4-stroke, liquid-cooled, DOHC
Fuel System Fuel injection
Ignition Electronic ignition (Transistorized)
Lubrication Wet sump
Starter Electric
Warranty:
Warranty 12 Month unlimited mileage limited warranty
Prices and specifications subject to change without notice.
